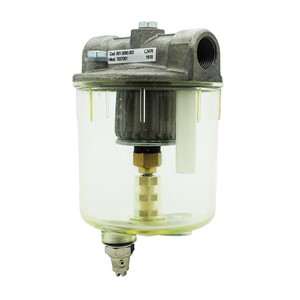

Atkinson 3/8" Plastic Bowled Water Separater Filter - GFH3578-W-3/8

Atkinson Oil Tank Water Trap Filter GFH3578-W-3/8 - With Drain 3/8� BSP Female Thread.

Now there is a filter that allows you to easily drain off any�water collected from�your heating oil. When you see any trapped water in the filter bowl simply open a valve to drain this off. Works as a particulate filter with the facility to view and drain off trapped water.

This is the Atkinson Water Trap Filter - it is essentially an oil filter with water drain and is made up with a clear bowl and drain point which enables the end user to monitor and remove any water build up within the filter.

How it works: 1 Separation: the incoming diesel oil changes speed and direction. The contaminated liquid and solid particles separate out and settle on the bottom of the tank from which they are then drained before coming into contact with the filter element. 2 Coalescence: The suspended water particles come together and separate out from the diesel oil in the final part of the feed pipe. 3 Filtration: The purified diesel oil crosses the stainless steel filter element. This deals with any micronic particles still suspended after the separation treatment of phases 1 and 2.

ATKINSON product code: GFH3578-W-3/8
